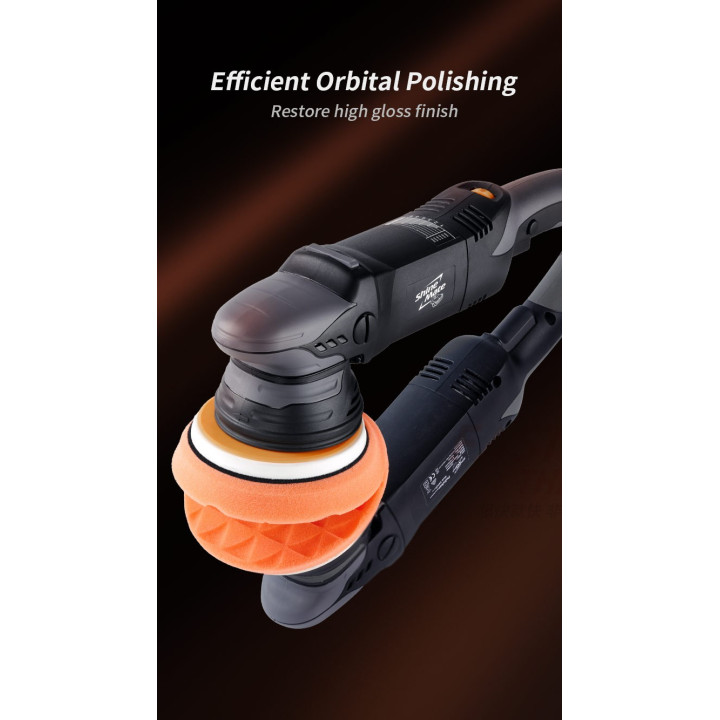

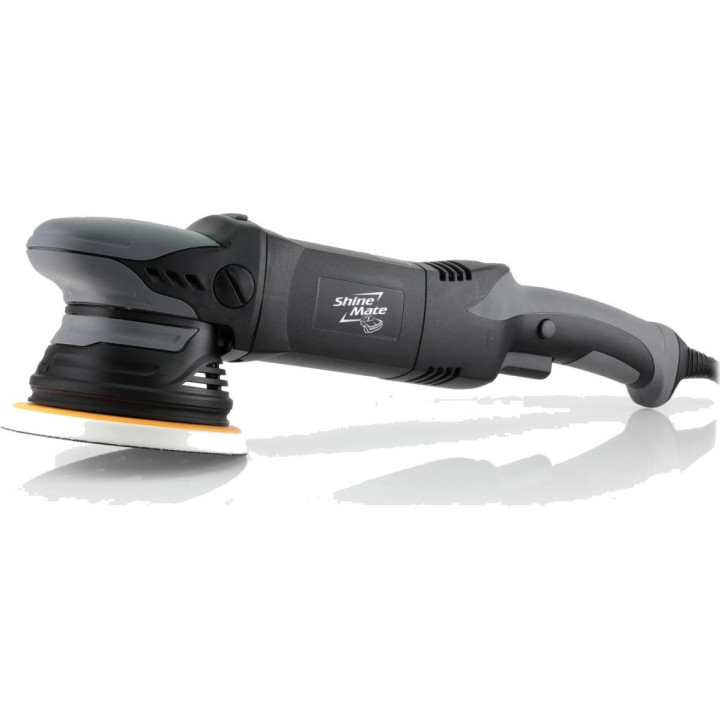

ShineMate EX620-5/15 — dual-action polisher, 15 mm orbit

About the product

The ShineMate EX620-5/15 is a dual-action polisher with a 15 mm orbit for paint correction and finishing. The official specification confirms 800 W rated / 1200 W maximum input, 3000–5800 min⁻¹ no-load speed, a 123 mm backing plate, a 150 mm pad, M8 thread and 2.6 kg weight.

Confirmed specifications

• 15 mm orbit.

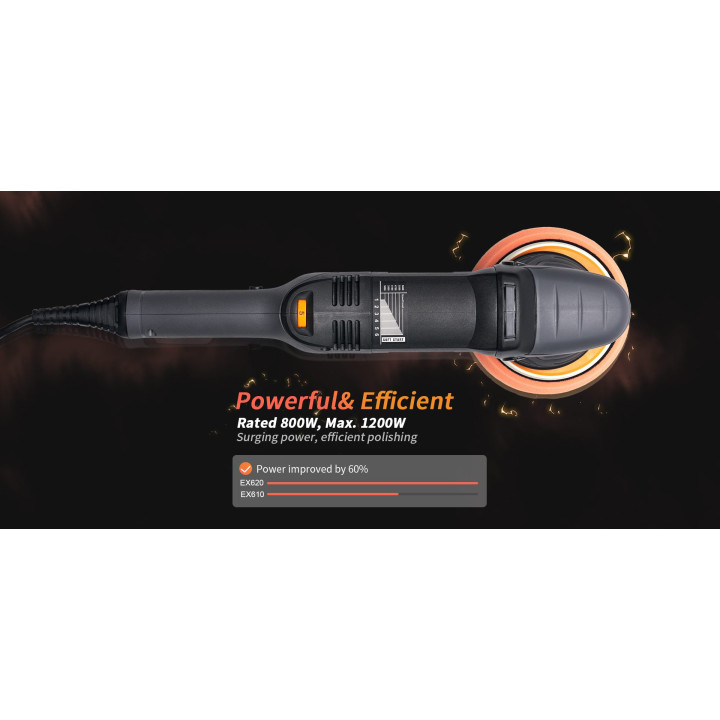

• 800 W rated / 1200 W maximum input.
• 3000–5800 min⁻¹ no-load speed.
• 123 mm backing plate, 150 mm pad, M8 thread and 2.6 kg weight.

Application

1. Fit the supplied or manufacturer-compatible 123 mm backing plate and a 150 mm pad, then centre the pad carefully.

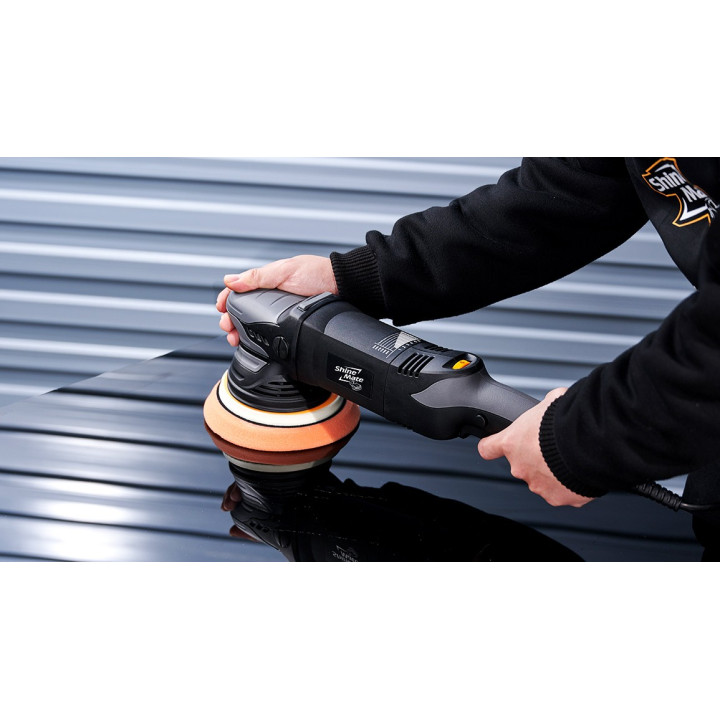

2. Spread the compound at a low speed and work the panel with overlapping passes, increasing speed only when the combination requires it.
3. Remove residue and inspect the correction under suitable light before repeating the step or changing the product.

Important

Use suitable PPE and do not work on hot or contaminated surfaces. Check the pad and backing plate before every use, keep the machine moving and test the selected process on a small area first.
