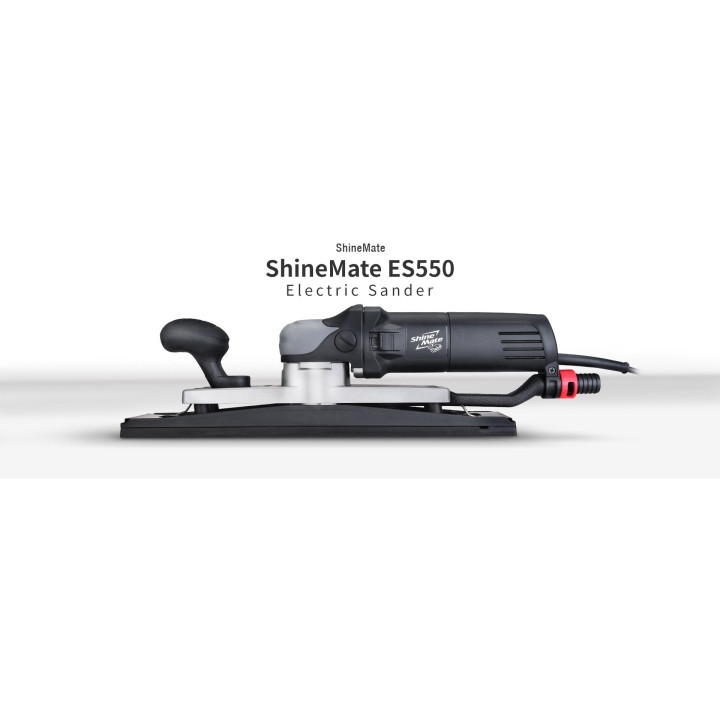

ShineMate ES550-5 — long-bed orbital sander, 400 × 70 mm

About the product

The ShineMate ES550-5 is a long-bed orbital sander for controlled sanding and paint preparation. The official specification confirms a 5 mm orbit, 600 W input, 4000–7000 min⁻¹ speed, central extraction, M8 thread, 3.2 kg weight and a standard 400 × 70 mm backing plate. A 400 × 80 mm plate is listed separately as an optional/accessory model.

Confirmed specifications

• 5 mm orbit and 600 W input.
• 4000–7000 min⁻¹ speed.
• Standard 400 × 70 mm backing plate; 400 × 80 mm is a separate optional/accessory model.
• Central extraction, M8 thread and 3.2 kg weight.

Application

1. Fit the standard 400 × 70 mm backing plate and an appropriate abrasive, then connect compatible central extraction.
2. Sand with even overlapping passes and controlled pressure; select the abrasive grade for the preparation step and material.
3. Clean the surface and inspect the sanding pattern before changing the abrasive or moving to the next stage.

Important

The standard product plate is 400 × 70 mm; the 400 × 80 mm model is a separately listed option and is not assumed to be included. Use eye, hearing and respiratory protection, secure the workpiece and check extraction and cable condition before use.
